The Brilliance and Radiance phono preamps are the culmination of an audio dream that began in 1982. The intervening years are a study of various circuit techniques, listening, redesigning, examining flaws in existing products, and the many variations in vinyl reproduction equipment. These products represent the successful completion of an engineering challenge-- can we create a phono amplifier with a gain of over 30 000, in a single enclosure, that has inaudible noise and no hum?
To do it, we had to invent two new circuits, our SPX regulator and our Bel amp op amp. Our regulators are based on a circuit we patented in 2010, which has been used in world renowned audiophile products and by do-it-yourself-ers worldwide for more than 16 years. Bel amp is a specially designed audio op amp used in Brilliance and Radiance. With superb specifications and features, it is also available for purchase.
Choose a tab below to see more information about each product line.
Extreme Audiophile Vinyl Gear
Discrete Audio Components
Phono preamplifers
Unveil the deepest nuances of your vinyl collection with unparalleled clarity and immersive fidelity
quote from Philips
Supple Sonics Above the Silence
Belleson phono preamplifiers deliver a profound listening experience characterized by a black backdrop against which your music comes alive. Hear every suble detail and nuance, revealing the true artistry of your vinyl.
Our commitment to an ultra-quiet noise floor means nothing interferes with the signal from your cartridge, allowing the softest moments of your music to be heard with astonishing clarity and presence.
The Ultimate in User Control: Wifi Hifi
With the unique Wifi Hifi browser-based remote control, you have the power to perfectly optimize your cartridge loading and gain from the comfort of your listening chair. No fiddling with dip switches or opening the chassis. You can even dial in a less-than-optimum recording. Transform a technical chore into a seamless luxury experience, sculpting your sound in real time.
Direct Coupled for Pure Bass
Our fully DC coupled circuitry eliminates coupling capacitors, delivering the deepest, cleanest bone-rattling bass without compromise. Belleson's unique Servo Accelerator and internal software mute prevent annoying "thumps" that can occur at power-up with direct coupled amplifiers. It delivers only pure, unadulterated musical foundation.
quote from Fremer
Craftsmanship and Origin
Our products are custom designed, including Wifi Hifi software, and hand-built in our South Carolina shop. We machine and assemble every detail to deliver spectacular sound that is second to none. Belleson was founded in 2010 to produce high quality audio components. Over the years our voltage regulators have improved the performance of many DIYers and audio manufacturers. Radiance and Brilliance are a natural extension of our passion for accurate, precision, excellent audio reproduction.
Discrete Components
Superpower Discrete Voltage Regulators
All our discrete voltage regulators are built on the same patented design, with four "flavors" tailored to a specific application requirement set. These products allow you to optimize your circuit power with minimum complexity and maximum efficiency. Choose from
Short cuts:

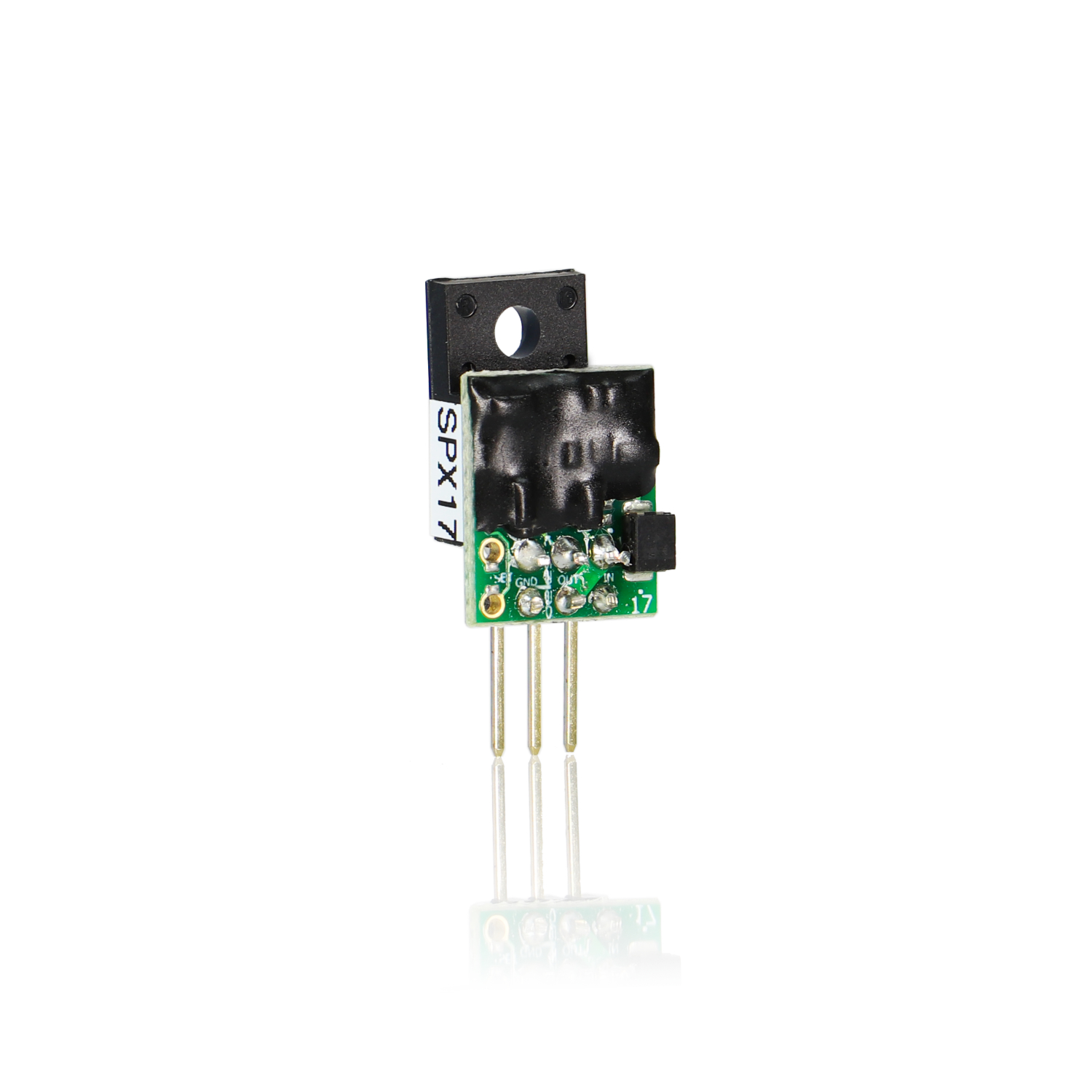

SPX Max Performance Superpower
Our most popular regulator!
- single resistor variable output voltage 5V to 30V
- positive and negative versions
- 3.3V available, not variable
- 3A output current
- <1V drop out
- 60W max power dissipation (with adequate cooling)
- 110dB PSRR/ripple rejection DC to 50kHz
- <1µV/V RMS noise, 20Hz–20kHz
- <1µsec recovery time for 250mA current step
SPHP 1000 Watt Superpower
A high current and high voltage product, with 10A output at up to 100V, uses an external 200W power transistor to deliver superbly regulated output voltage with enough voltage and current for power amps and music servers.

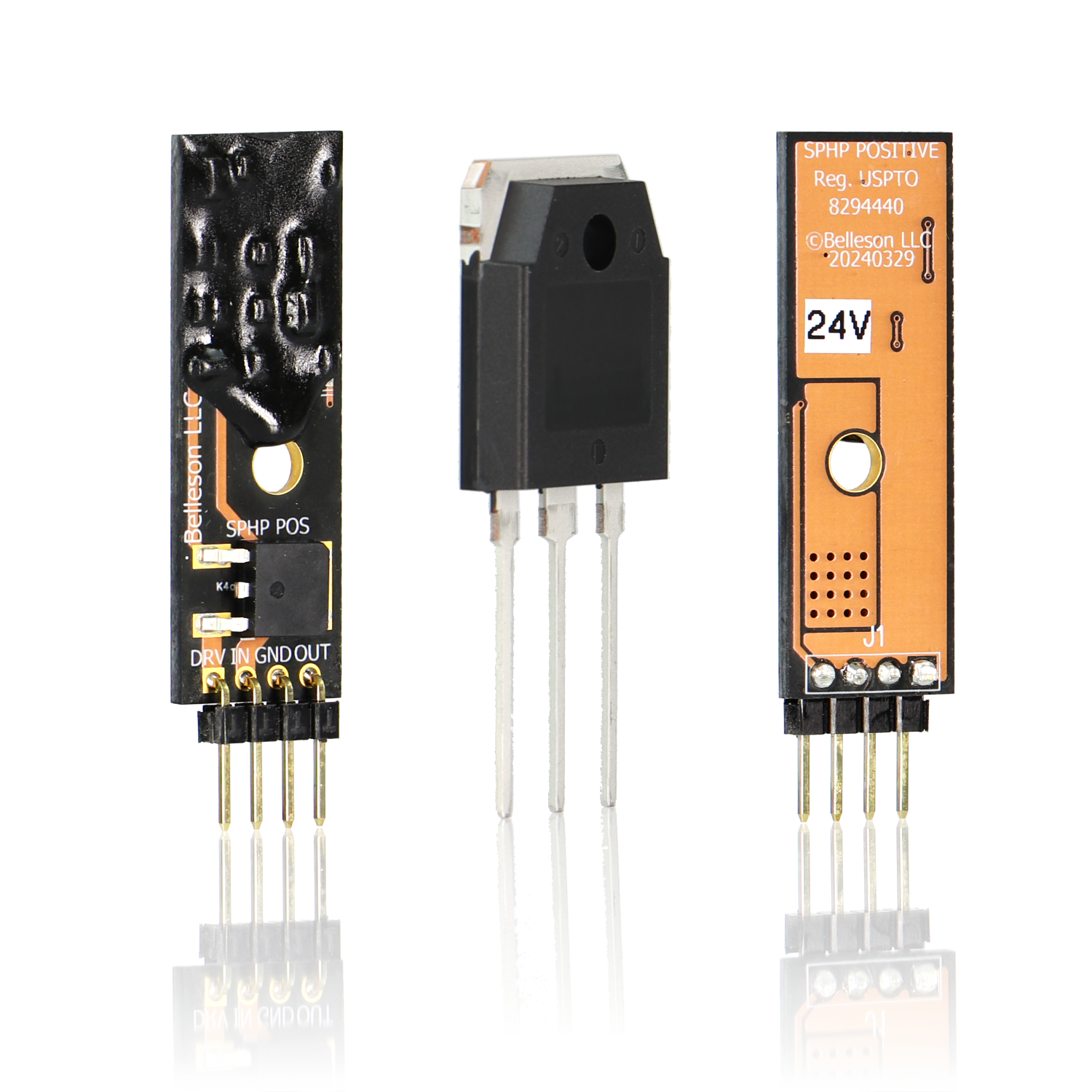

SPHP controller PCB and high power output transistor
- Up to 1000W power to the load!
- Output voltage 5V to 100V, fixed or adjustable with trimpot
- Output load current to 10A
- Positive and negative versions
- 200W max power dissipation (with adequate cooling)
SPLV Low Voltage Superpower
The perfect regulator for low voltage projects using Arduino, ESP-32, Raspberry Pi, etc.
- Output voltage 1V to 2.5V, fixed only
- positive and negative versions
- 1A output current
- <2.1V drop out at 500mA, great to filter 5V USB a supply
SPHV High Voltage Superpower
A tiny 4 pin TO-220 size discrete voltage regulator with output voltage from 5V to 450V. SPHV is perfect for powering tube amplifier stages with Superpower's usual low noise, amazing ripple rejection and superb transient response.
- Output voltage 5V to 450V
- Positive only
- 500mA output current
- Variable output voltage with a single resistor
- Great for tube/valve regulation

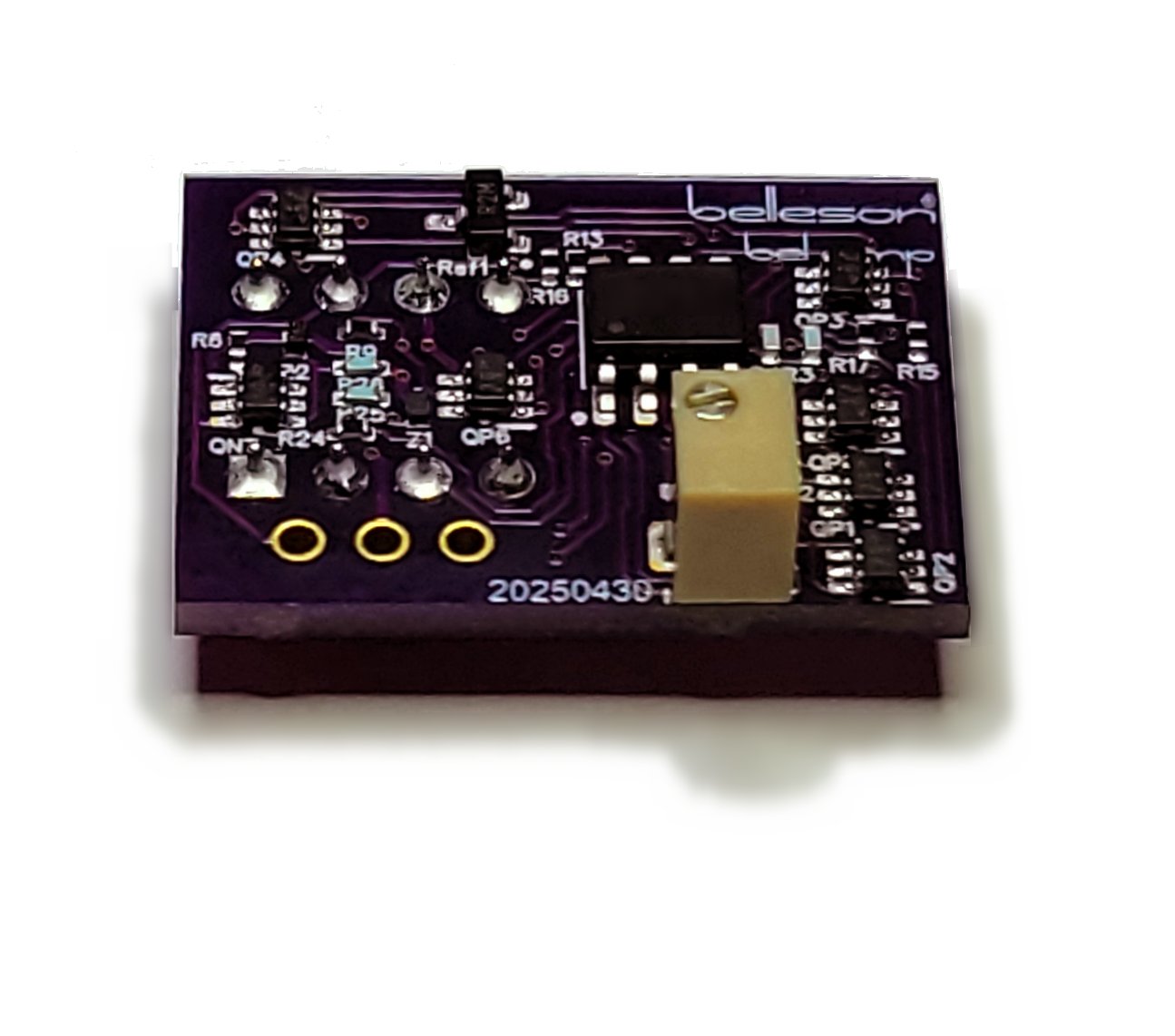

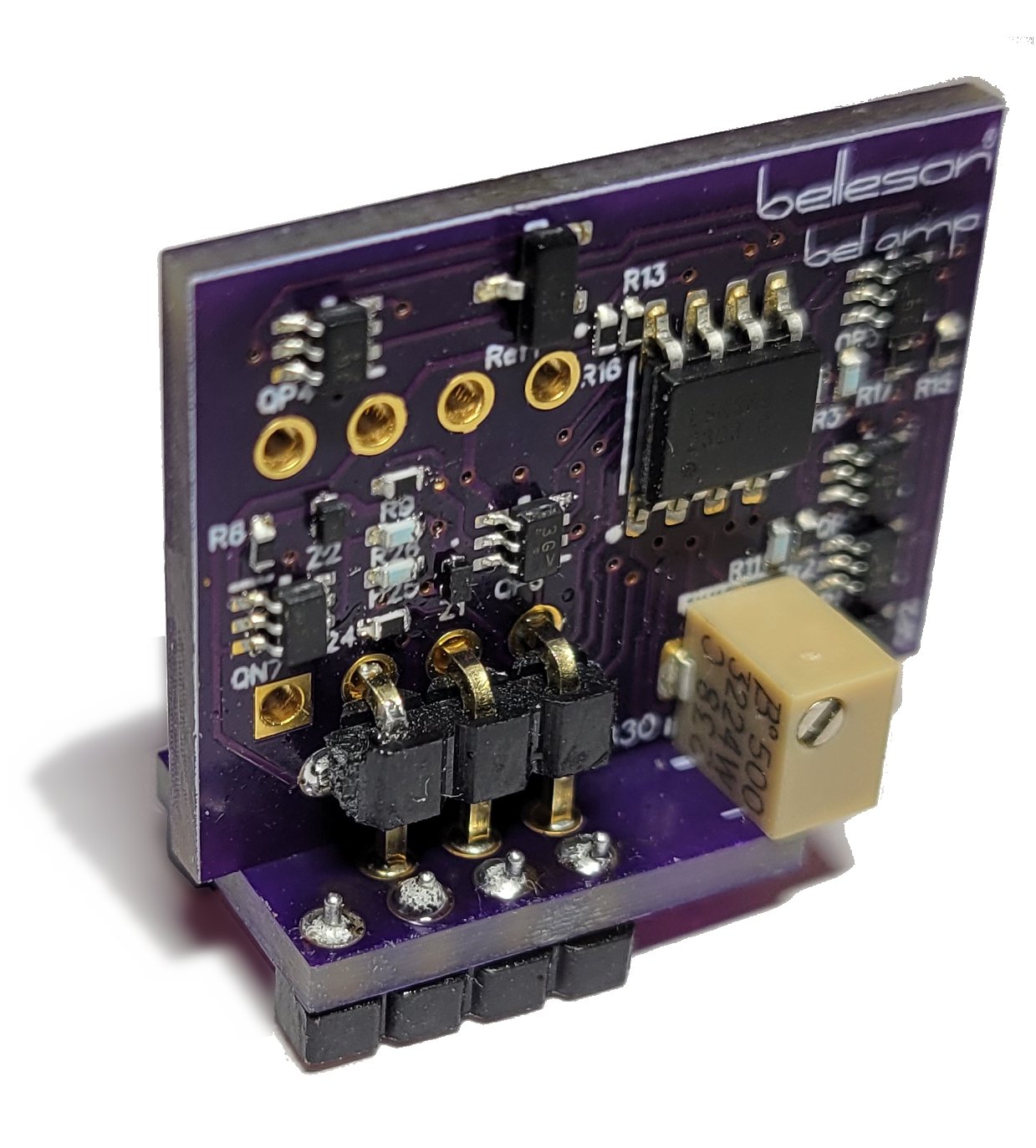

Bel amp High-Performance Discrete Op Amp
 |
|
Available in flat and upright form factors for ease of use
Bel amp is the result of two+ years of intensive design simulation, building, bench evaluation, listening and tweaking. The result is a discrete op amp with a combination of many desirable characteristics:
- Very high input impedance
- Very low distortion
- Very low noise
- High output current
- Wide bandwidth
- High stability
- External transconductance output
- Offset voltage trim (for voltage output)
- THD trim (for current output)
Order yours today and see (or hear) the improvement it can make in your product performance!
