Innovative CircuitsSuperpower, the ultimate voltage regulator
"The best solution is a well-designed power supply in the audio gear itself." This is Ed Simon's conclusion
of a 5 part article on cleaning up AC power lines in AudioXpress, Aug - Dec 2008.
Today's 24 bit and higher circuits demand the best voltage regulation, and the Belleson Superpower gives it to you. A new patent pending design fully isolates almost all circuitry from the input voltage, providing the best line regulation possible. The innovative design delivers current faster and cleaner than ever before available, with the lowest possible output impedance!
Bootstrap powered by its own clean, quiet output voltage, the Superpower has amazing load regulation, low noise and dynamic performance.
You may have heard of a "super regulator" designed by noted engineer, author and audiophile designer Walt Jung. Mr. Jung's design and several variations, while excellent, have been improved.
The Belleson Superpower regulator, like Mr. Jung's design, uses the
regulator's cleaned and quieted output
voltage as the "bootstrapped" power source for its own internal
reference and error
amplifier. In addition,
- It is stable with as low as 1µF* output capacitance and remains stable with larger values.
- Output voltage is set with a single resistor.
- Superpower fits a 3 terminal regulator footprint and can bolt
directly to a heat sink.
- Start-up is guaranteed—the expected output voltage is the only stable state.
- Gain/bandwidth of the internal amplifier is independent of output voltage.
- Drop-out voltage is as low as ˝V at low current, less than 2V at currents to ˝A for standard or 1A+ for the HV and J versions.
- Superpower performs better without a pre-regulator.
- There are no zener diodes.
* 3.3V output device requires minimum 50µF for stability.
Click the oscillogram to see more information on load regulation:

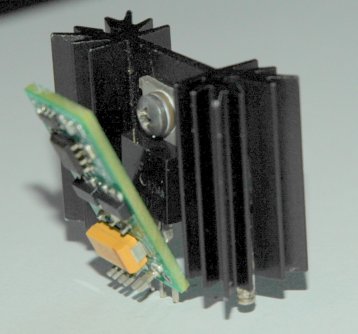

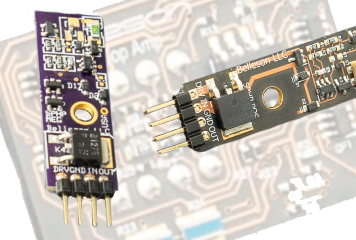

Belleson® has introduced a small form factor, high output current Superpower™
regulator. The new SPJ78 and SPJ17 devices are available with Vout of +3.3V, +5V
and +6.25V, at current to 2 amps.
